Showing 271–285 of 285 results
-
Pressure Gauges
WIKA Models 632.50, 633.50 Capsule pressure gauge, stainless steel For the process industry, NS 63, 100 and 160
Pressure GaugesWIKA Models 632.50, 633.50 Capsule pressure gauge, stainless steel For the process industry, NS 63, 100 and 160
- With liquid-filled case for applications with high dynamic pressure loads or vibrations (model 633.50)
- For gaseous, dry and aggressive media, also in aggressive environments
- Process industry: Chemical, petrochemical, pharmaceutical, biotechnology, machine and power generation industries
- Zero point correction in front
- Completely from stainless steel
- Special connection location on request
- Low scale ranges from 0 … 2.5 mbar
SKU: n/a -
Pressure Gauges
WIKA Models 700.01, 700.02 Differential pressure gauge With magnetic piston or with magnetic piston and separating diaphragm
Pressure GaugesWIKA Models 700.01, 700.02 Differential pressure gauge With magnetic piston or with magnetic piston and separating diaphragm
- Filter plants
- Pump monitoring
- Cooling circuits
- Pipeline systems
- Differential pressure measuring ranges
Model 700.01: from 0 … 400 mbar to 0 … 10 bar
Model 700.02: from 0 … 160 mbar to 0 … 2.5 bar - Compact system case from stainless steel, suitable for high working pressures (static pressures) selectable, 100, 250 or 400 bar (model 700.02 up to a max. 100 bar)
- Overpressure safe either side to maximum working pressure
- System and/or case of indication may be changed locally
- Up to 2 reed contacts may also be adjusted and retrofitted locally
SKU: n/a -
Pressure Gauges
WIKA Models 711.12, 713.12, 731.12, 733.02 Differential pressure gauge Copper alloy or stainless steel, scale ranges from 0.6 … 1,000 bar
Pressure GaugesWIKA Models 711.12, 713.12, 731.12, 733.02 Differential pressure gauge Copper alloy or stainless steel, scale ranges from 0.6 … 1,000 bar
- Heating, ventilation and air-conditioning
- For gaseous and liquid media that are not highly viscous or crystallising
- Models 731.12 and 733.02 also for aggressive media
- Models 713.12 and 733.02 with liquid-filled case are suitable for high dynamic pressure loads and vibrations
- Scale ranges from 0 … 0.6 bar to 0 … 1,000 bar
- Two process connections and two independent pointers
- Differential pressure display with moving dial
- Cost-effective and reliable
SKU: n/a -
Pressure Gauges
WIKA Models 712.15.100, 732.15.100 Differential pressure gauge Cryo Gauge, copper alloy or stainless steel, NS 100
Pressure GaugesWIKA Models 712.15.100, 732.15.100 Differential pressure gauge Cryo Gauge, copper alloy or stainless steel, NS 100
- Level measurements in closed tanks, particularly in cryotechnology
- Filter monitoring
- Monitoring and control of pumps
- For gaseous and liquid media that are not highly viscous
- Differential pressure measuring ranges from 0 … 80 mbar to 0 … 1725 mbar
- High working pressure (static pressure) of 50 bar
- Overpressure safety either side up to 50 bar
- Very compact design
- Optionally compact valve manifold with working pressure indication
SKU: n/a -
Pressure Gauges
WIKA Models 712.15.160, 732.15.160 Differential pressure gauge Cryo Gauge, copper alloy or stainless steel, NS 160
Pressure GaugesWIKA Models 712.15.160, 732.15.160 Differential pressure gauge Cryo Gauge, copper alloy or stainless steel, NS 160
- Level measurements in closed tanks, particularly in cryotechnology
- Filter monitoring
- Pump monitoring and control
- For gaseous and liquid media that are not highly viscous or crystallising and have no suspended solids
- Differential pressure measuring ranges from 0 … 40 mbar to 0 … 4,000 mbar
- High working pressure (static pressure) of 50 bar
- Overpressure safety either side up to 50 bar
- Scalable measuring ranges (maximum turndown of 1 : 3.5)
- Compact valve manifold with working pressure indication (optional)
SKU: n/a -
Pressure Gauges
WIKA Models 716.11, 736.11 Differential pressure gauge For very low differential pressures from 2.5 mbar, copper alloy or stainless steel
Pressure GaugesWIKA Models 716.11, 736.11 Differential pressure gauge For very low differential pressures from 2.5 mbar, copper alloy or stainless steel
- Differential pressure measurement at measuring points with very low differential pressures, for gaseous, dry, clean, oil and grease free media
- Model 736.11 also for aggressive media and ambience
- Filter monitoring in ventilation and heating systems
- Filter monitoring in overpressure and clean rooms
- Differential pressure controlled monitoring of ventilator and blast pressures
- Differential pressure measuring ranges from 0 … 2.5 mbar
- As a standard zero adjustment in front
- Ingress protection IP66
- Case from stainless steel
SKU: n/a -
Pressure Gauges
WIKA Models 732.14, 762.14 Differential pressure gauge For the process industry, all-metal media chamber
Pressure GaugesWIKA Models 732.14, 762.14 Differential pressure gauge For the process industry, all-metal media chamber
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Pump monitoring and control
- Filter monitoring
- Level measurement on closed vessels
- Differential pressure measuring ranges from -1 … +30 bar [-14.5 … 435 psi] to 0 … 40 bar [0 … 580 psi]
- High working pressure (static pressure) and high overload safety, selectable 40 bar [580 psi], 100 bar [1,450 psi], 250 bar [3,625 psi], 400 bar [5,800 psi] and 650 bar [9,425 psi]
- The transmission fluid in the measuring chamber dampens the indicator in case of high changes of the rate of pressure
- Model 73x.14: Stainless steel version
- Model 76x.14: Version with special materials
SKU: n/a -
Pressure Gauges
WIKA Models 732.18, 733.18 Differential pressure gauge For refrigeration technology, stainless steel, NS 80 and 100
Pressure GaugesWIKA Models 732.18, 733.18 Differential pressure gauge For refrigeration technology, stainless steel, NS 80 and 100
- Measurement of differential pressure or of two different pressures applied in refrigeration plants or compressors
- Simultaneous measurement of the vapour pressure and the resulting vapour temperature
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive ambience
- Differetial pressure with moving dial
- Design optionally with duplex scale
- With liquid-filled case for damping in applications with high dynamic pressure pulsations or vibrations and for avoiding condensation water Model 733.18
- Combined pressure and temperature scales as duplex, triples or quadruplex scales for all common refrigerants
SKU: n/a -
Pressure Gauges
WIKA Models 732.31, 733.31, 732.51, 733.51 Differential pressure gauge For the process industry, all-metal media chamber
Pressure GaugesWIKA Models 732.31, 733.31, 732.51, 733.51 Differential pressure gauge For the process industry, all-metal media chamber
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Pump monitoring and control
- Filter monitoring
- Level measurement on closed vessels
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Pump monitoring and control
- Filter monitoring
- Level measurement on closed vessels
SKU: n/a -
-
Pressure sensors
WIKA Models E-10, E-11 Pressure transmitter with flameproof enclosure For applications in explosion-protected areas
Pressure sensorsWIKA Models E-10, E-11 Pressure transmitter with flameproof enclosure For applications in explosion-protected areas
- Borehole monitoring
- Refineries and petrochemical industry
- Drilling platforms and pipelines
- Gas compressors
- CSA- and FM-approved as “explosionproof” for class I, div. 1 hazardous areas
- ATEX- and IECEx-approved as “flameproof enclosure” for II 2G Ex db IIC T6…T1 Gb
- Current or voltage output
- Designed for harsh ambient conditions
- Low-power version available as an option
SKU: n/a -
Pressure sensors

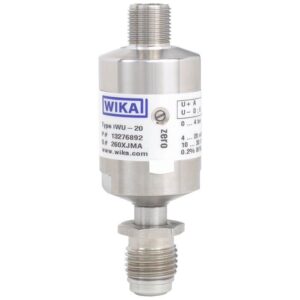

WIKA Models iWU-20, iWU-25, iWU-26 Ultra high purity transducer For hazardous areas, Ex ia IIC
Pressure sensorsWIKA Models iWU-20, iWU-25, iWU-26 Ultra high purity transducer For hazardous areas, Ex ia IIC
- Semiconductor, flat panel display and photovoltaic industry
- Ultrapure media and special gas systems (gas sticks, gas panels, bulk-gas supply, tank farm installations)
- Compact design
- ATEX and IECEx zone 0 approval
- Ingress protection IP67 with “side access” zero potentiometer
- Excellent EMC stability
- Active temperature compensation
SKU: n/a -
Pressure sensors
WIKA Models P-30, P-31 Pressure sensor For precision measurements
- Measurement and test benches
- Calibration technology
- Laboratories
- Plant construction and machine building
- Accuracy 0.1 %, without additional temperature error in a range of 10 … 60 °C
- Optional accuracy of 0.05 % (full scale) available
- Fast measuring rates up to 1 kHz
- Analogue, USB and CANopen® output signals available
- On-site calibration possible using product software
SKU: n/a -
Pressure sensors

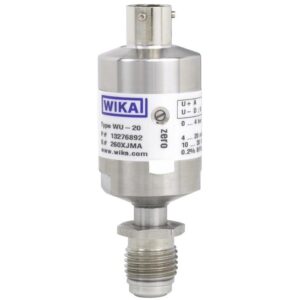

WIKA Models WU-20, WU-25, WU-26 Ultra high purity transducer For applications in hazardous areas, Ex nA ic
Pressure sensorsWIKA Models WU-20, WU-25, WU-26 Ultra high purity transducer For applications in hazardous areas, Ex nA ic
- Gas panels for OEM tools
- Semiconductor, flat panel display and photovoltaic industry
- Special and bulk-gas supply
- High-accuracy pressure measurement 0.15 % RSS
- Excellent long-term stability
- Signal noise cancellation and shielding
- Active temperature compensation
- ATEX and IECEx zone 2 approval
Class I, div. 2, groups A, B, C and D
SKU: n/a -
Pressure sensors

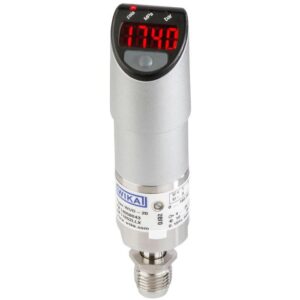

WIKA Models WUD-20, WUD-25, WUD-26 Ultra high purity transducer With integrated display and optional switch contacts
Pressure sensorsWIKA Models WUD-20, WUD-25, WUD-26 Ultra high purity transducer With integrated display and optional switch contacts
- Semiconductor, flat panel display and photovoltaic industry
- Ultrapure gas supply in semiconductor production systems
- High-accuracy pressure measurement 0.15 % RSS
- Excellent long-term stability
- Signal noise cancellation and shielding
- Vacuum-referenced pressure measurement
- Active temperature compensation
SKU: n/a
